CuTS® DESIGN GALLERY
Our plated thermal strap gallery highlights just some of the thousands of nickel and gold plated thermal straps we've designed for customers at NASA, national laboratories, universities, particle accelerator facilities, and for cryostat and cryocooler manufacturers in the United States, Europe, and Asia. The gallery also is a testament to the quality of our plating options, and the actual capabilities of our thermal strap platers (TAI does not photoshop or edit images of our thermal straps to give the appearance that we plate thermal straps--as some of our competitors do here in the United States). To learn more about our copper plating options, pricing, lead times, and production program history, contact us today!

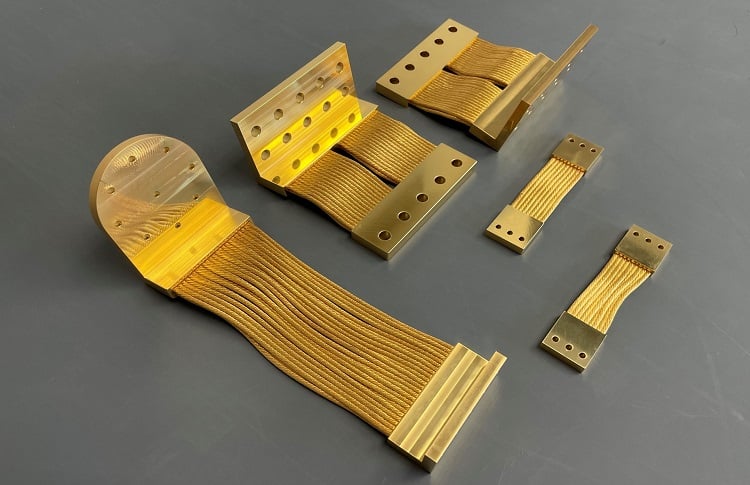

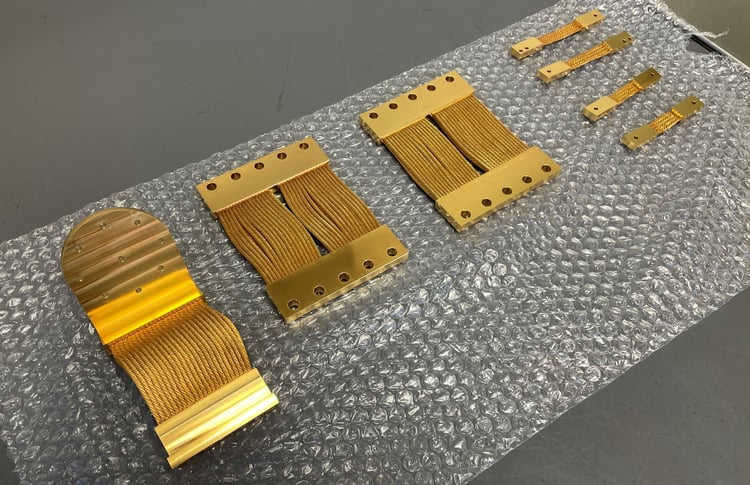

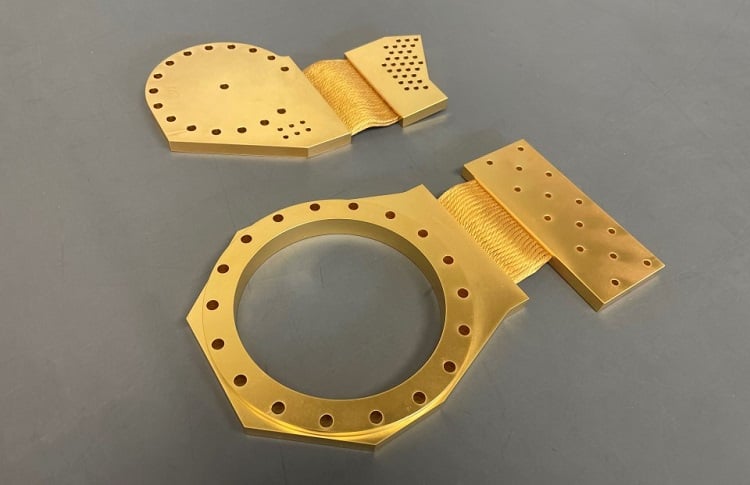

![]() Pictured: CS-68AL, CS--94C, and P7-501 Copper Thermal Straps with LAB GRADE Pd-Au Plating (NASA JPL) |

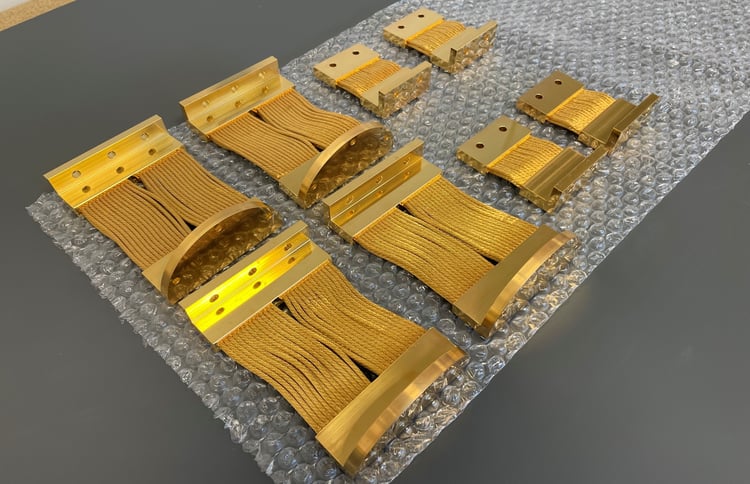

![]() Pictured: CS-85EL and P5-502 Copper Thermal Straps with LAB GRADE Pd-Au Plating (NASA) |
|
![]()

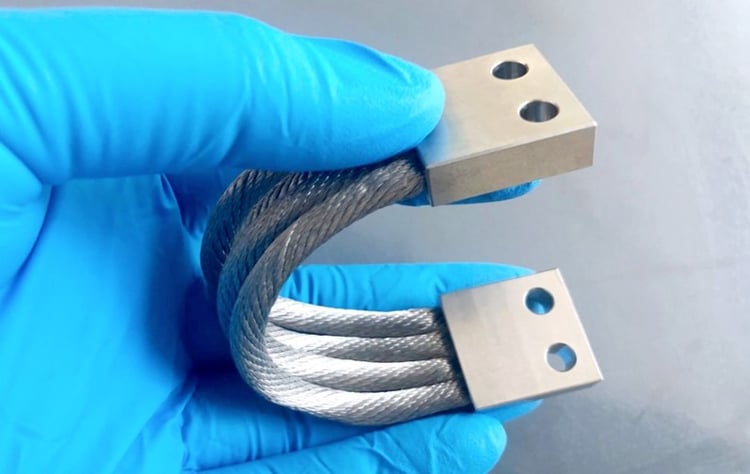

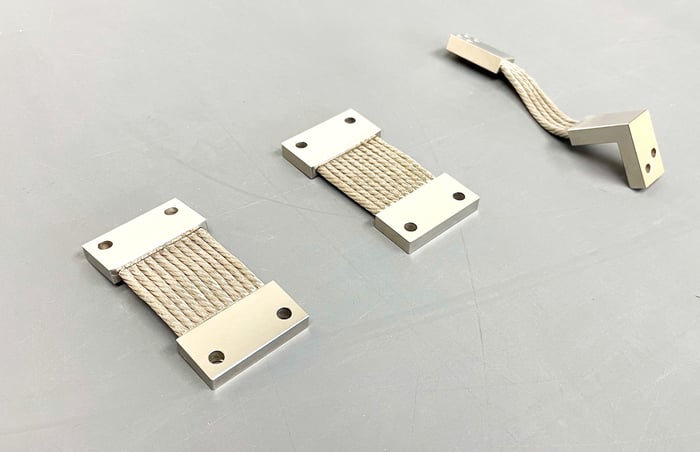

Pictured: Custom OFHC UltraFlex I Copper Thermal Straps with electroless nickel plating |

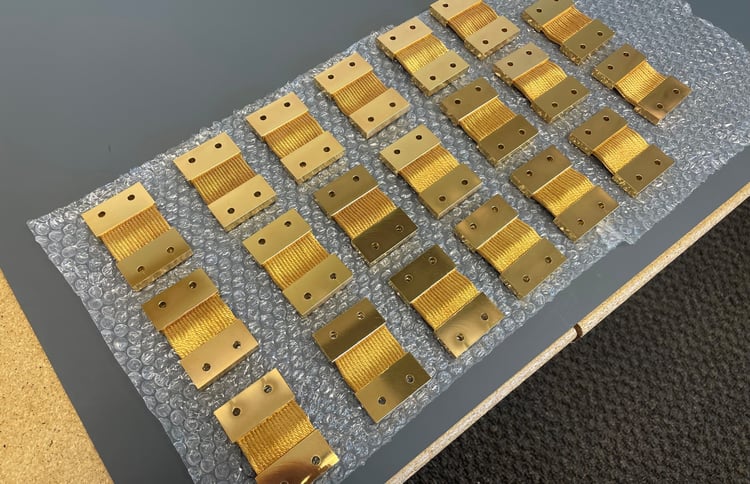

![]() Pictured: P5-502 Copper Thermal Straps with LAB GRADE Pd-Au Plating (Customer Withheld) |

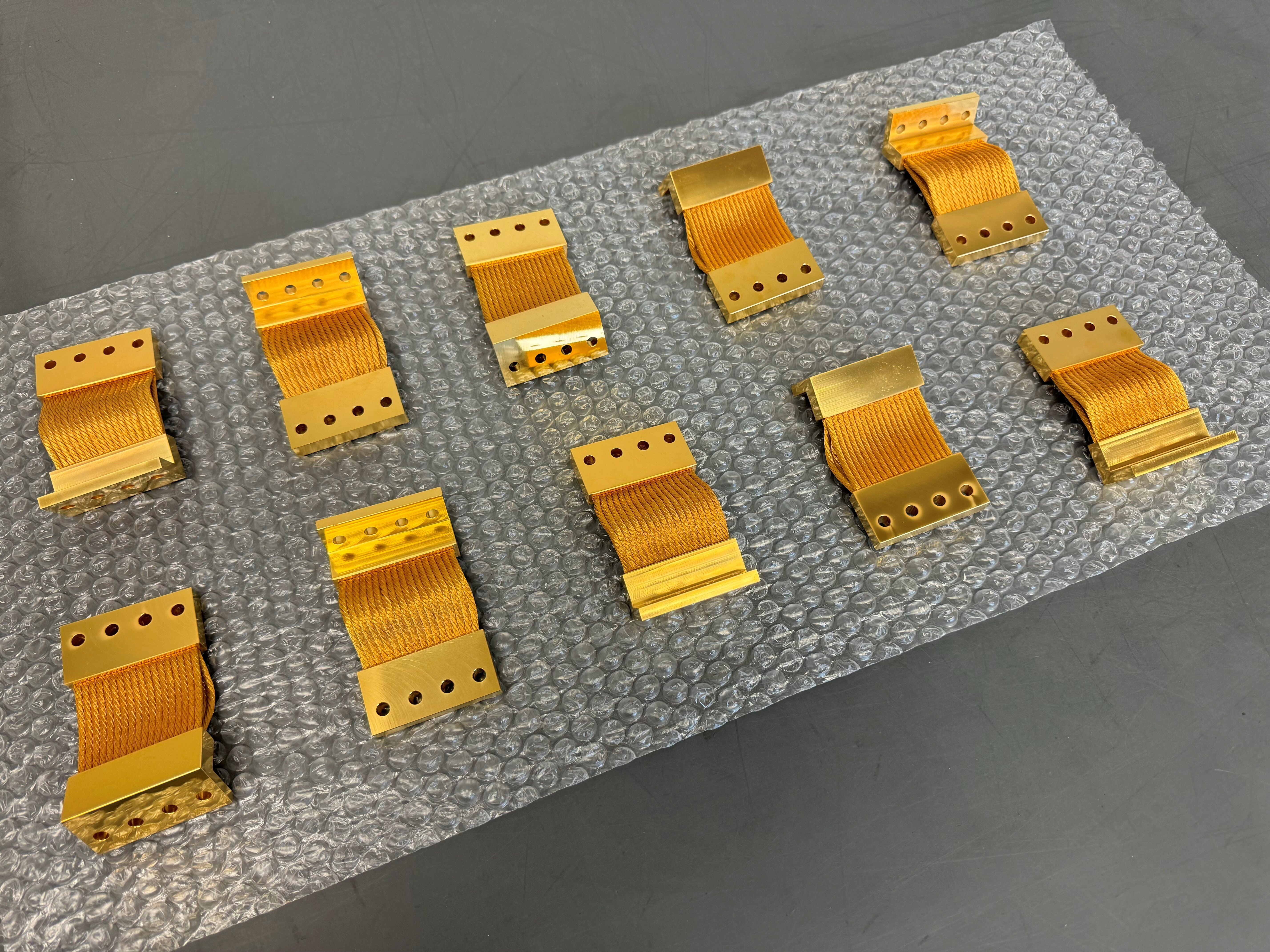

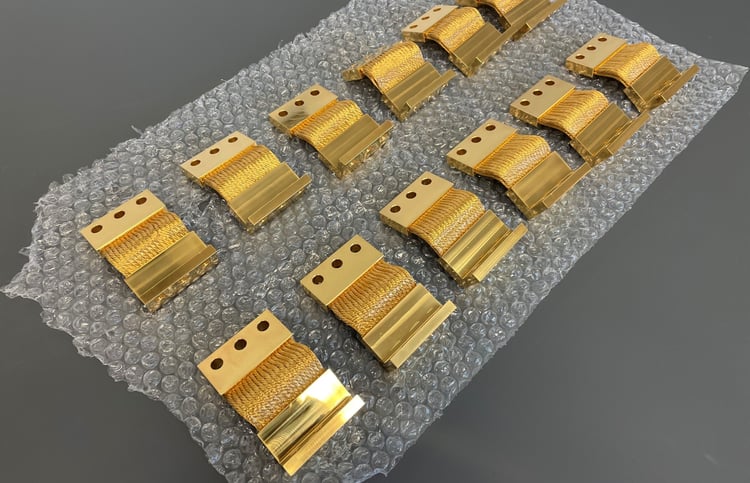

![]() Pictured: P5-505 Copper Thermal Straps with LAB GRADE Pd-Au Plating (Customer Withheld) |

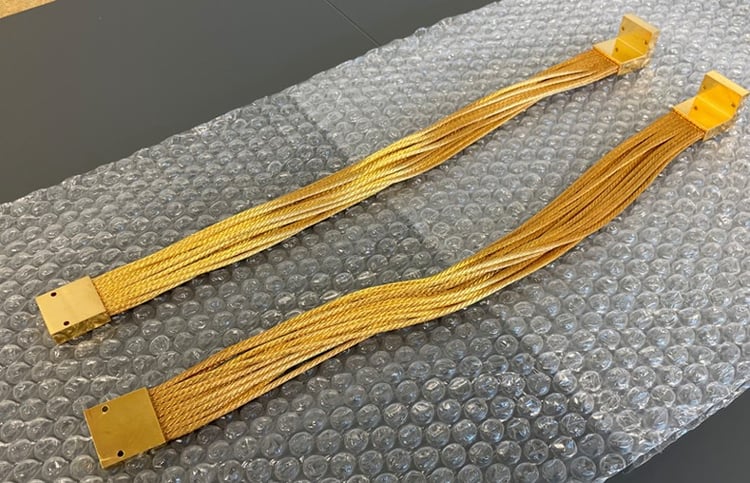

![]() Pictured: Customized P6-505 Copper Thermal Straps with LAB GRADE Pd-Au Plating (Yale University) |

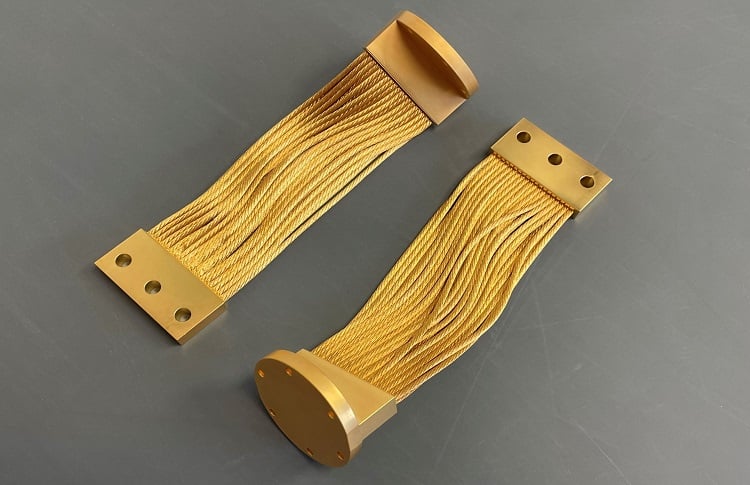

![]() Pictured: Custom Cryocooler Copper Thermal Straps with LAB GRADE Pd-Au Plating (Johns Hopkins University and NASA JPL Psyche Mission) |
![]() Pictured: Custom Cryostat Copper Thermal Straps with LAB GRADE Pd-Au Plating (Janis Research) |

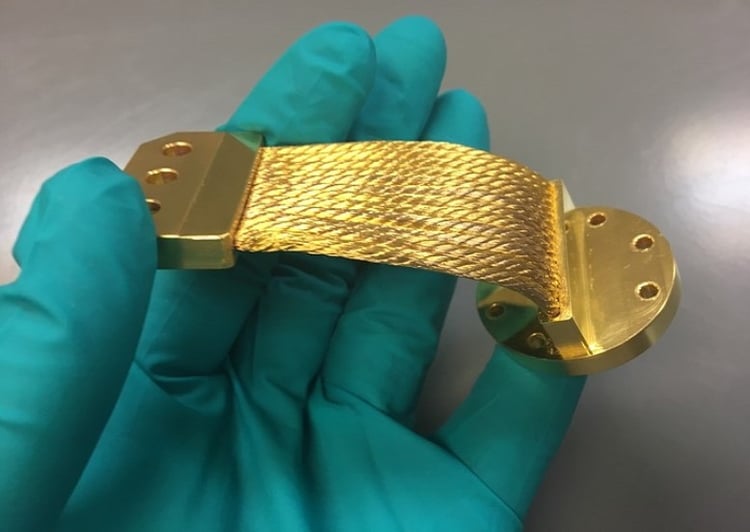

![]() Pictured: Custom Optical System Copper Thermal Straps with LAB GRADE Pd-Au Plating (Customer Name Withheld) |

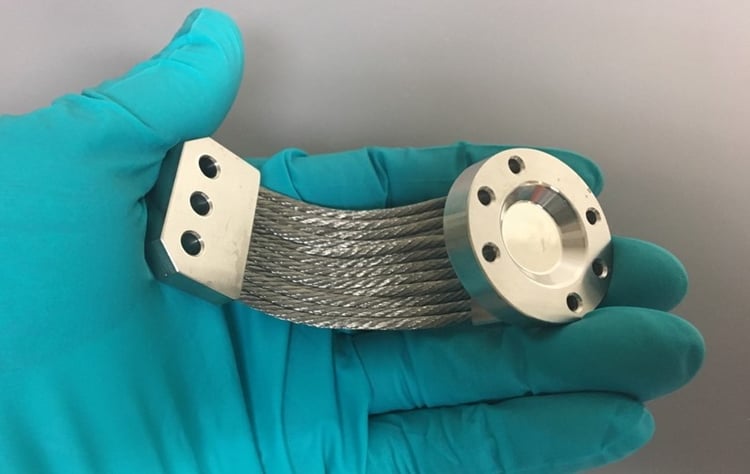

![]() Pictured: Custom Optical System Copper Thermal Straps with Electroless Nickel (Mid-Phosphorus) Plating (Customer Name Withheld) |
![]() Pictured: P60-501Copper Thermal Strap with Electroless Nickel (Mid-Phosphorus) Plating (Customer Name Withheld) |

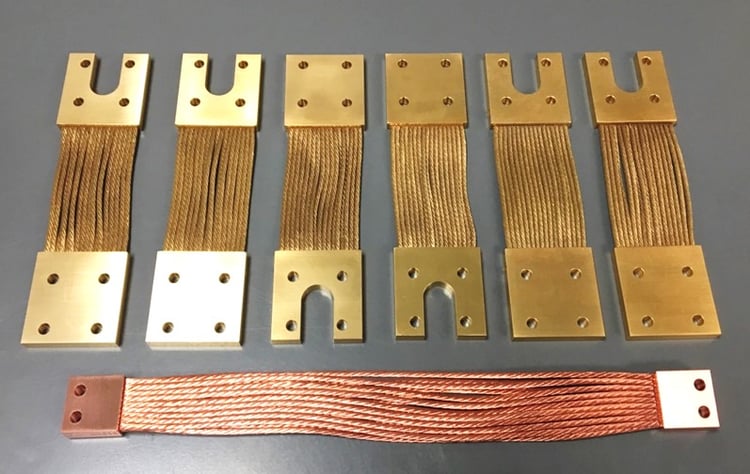

![]() Pictured: Custom Copper Thermal Straps with LAB GRADE Pd-Au Plating (Fermi National Lab). Bare Cu P6-502 added for reference. |

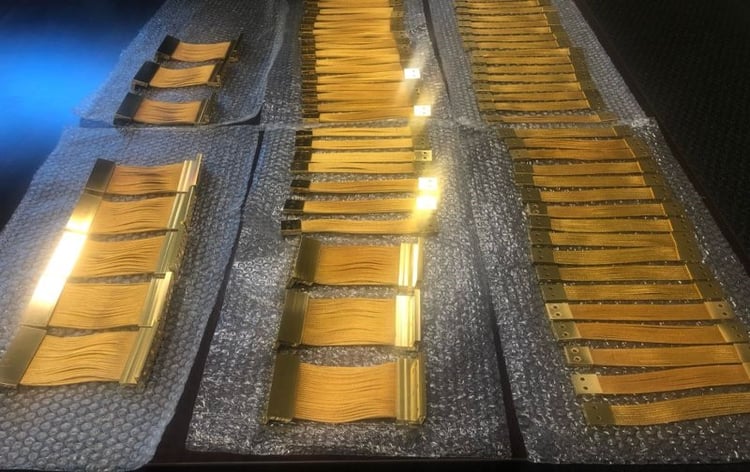

![]() Pictured: 50+ Copper Thermal Straps with LAB GRADE Pd-Au Plating, of a 500+ ct. production order (Indian Government Bahba Atomic Research Centre - BARC). |

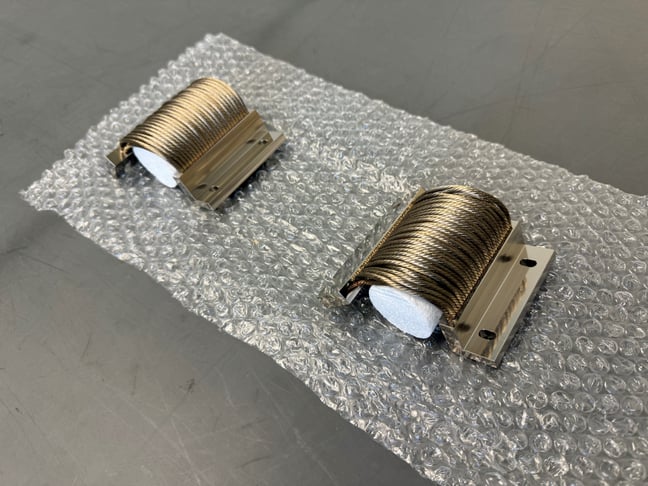

![]() Pictured: Electroless Nickel Plated P50-503 units. |

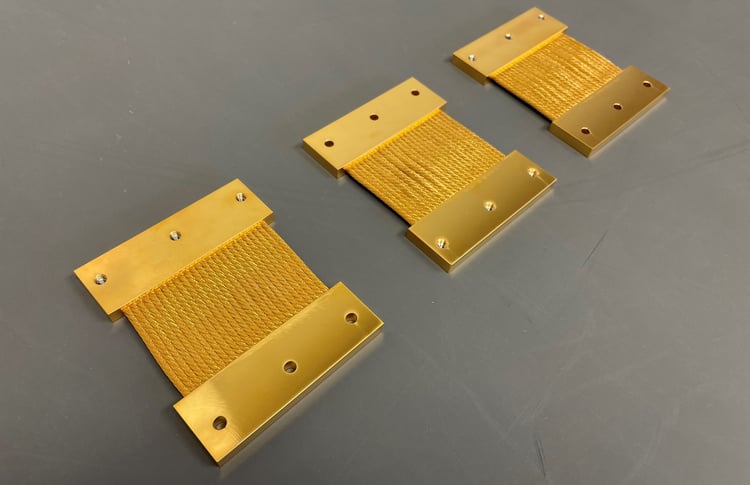

![]() Pictured: Pd-Au Gold Plated P4-501 units. |
![]() Pictured: Pd-Au Plated Custom Thermal Straps for cryocooler system for NASA JPL. |
![]() Pictured: Pd-Au plated cryocooler thermal straps (customer name withheld) |
![]()

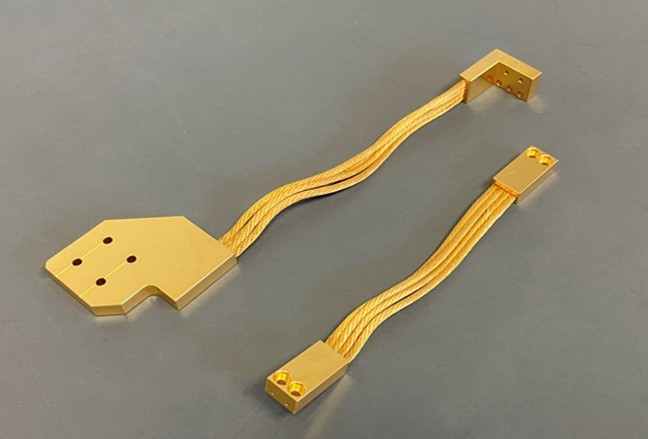

Pictured: Pd-Au Plated Custom and P7-501 Thermal Straps for Custom Cryostat Brookhaven National Lab. |
![]() Pictured: Pd-Au Plated Custom Thermal Straps for custom cryostat system using a Cryomech PT Cooler (4K and 50K stage straps pictured). |

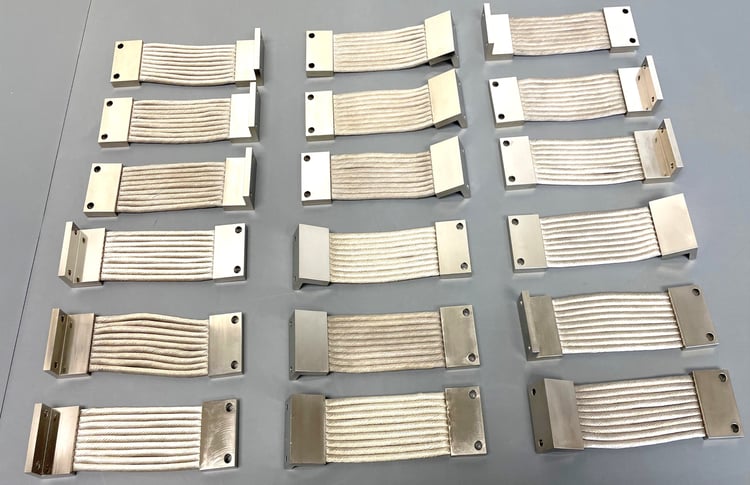

![]() Pictured: Ni-Plated Custom Copper Thermal Straps for Space Flight Application (Program Name Withheld) for Optimum Technologies, LLC. |
