CRYOCOOLER SERIES (CS) CuTS® CS-68B CuTS - Cryocooler Series Thermal Straps

Thermal Straps for Cryocoolers / Cryorefrigerators

TAI now offers our exclusive Cryocooler Series (CS™) Copper Thermal Strap (CuTS®) standard product line. Cryocooler Series (CS™) CuTS®  are based on common cold tip diameters from the industry's most popular cryocoolers, and from our customers' most frequent end fitting / terminal block styling requests.  As with all standard model straps, cabling/rope length and bolt pattern customization is free of charge (as are our front-end design and assessment services). For minor changes to end fitting dimensions, please contact us to discuss. Cryocooler Interface Isolator Thermal Strap - CS-45AL Custom

Please note that that TAI can customize any of the 72 CS™ Model CuTS® for a small additional fee, and we routinely provide fully custom cryocooler / cold head / dilution refrigerator thermal straps with any cold head diameter and end fitting configuration.

Pictured (Top): CS-68B CuTS® (January 2018). (Bottom): Customized CS-45AL Thermal Strap for NASA JPL (August 2017).

Cryocooler Series Copper Thermal Straps (CuTS®)

  • Most affordable straps in the Industry
  • No NRE or Design Fees
  • Typical 6-7 week lead times
  • Made entirely of 99.99 - 99.998% Pure OFHC cu (CU-101)
  • Solder-Free, never brazed/welded
  • Made with TAI's exclusive OFHC UltraFlex® copper cabling
  • Designed and fabricated for maximum flexibility
  • Available in single and double row straps
  • AVAILABLE IN 9 (2nd STAGE) COLD HEAD DIAMETERS
  • 72 SUB-MODELS TO CHOOSE FROM
  • NICKEL AND GOLD PLATING AVAILABLE
  • Material Certs and CoC's - FREE
  • Bolt pattern customization - FREE
  • Cable length customization - FREE
  • Front-end Design & Projection Services - FREE
  • Large Discounts for All New Customers, University, NASA, and National Laboratory Customers

2019 Copper Thermal Strap (CuTS) Catalog_

GET YOUR COPY OF THE 2019 CuTS® CATALOG TODAY!

 Custom and Standard Cryocooler Series CuTS® Examples

Thermal Straps - CS-52B Cryocooler Series

CS-52B CuTS® for Sumitomo™ Cryocooler RDK-305D

Pulse Tube Cryocooler Thermal Links

Custom Cryocooler Strap for Cryomech™ PT415 (4K)

Copper Thermal Strap

Custom Cryocooler Strap for Cryomech™ PT415 (50K)

Cryomech Cryocooler Thermal Strap

Custom Pulse Tube Cryocooler Strap for Cryomech™ PT30

Sumitomo ( SHI) Cryocooler Thermal Strap

Custom CS Strap for Sumitomo™ Pulse Tube Cryocooler RP-082B2

NASA JPL Cryocooler Thermal Straps

CS-45AL (Customized) - Compatible with Multiple Cryocoolers with minor modifications

Gold Plated Cryocooler Strap - Top side.jpg

Custom CS CuTS® with 99.99% Au Plating ASTM B-488 iii c (NASA GRADE)

CS-68B CuTS - Cryocooler Thermal Straps

CS-68B Cryocooler Strap for Sumitomo™ Cryocooler RDK-415D

Thermal Straps

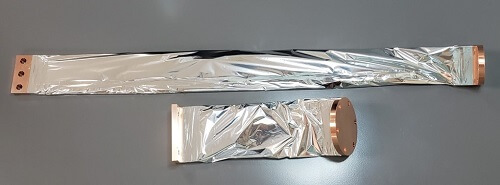

CS-47B (top) and CS-64BL (bottom) CuTS® with mylar sleeves

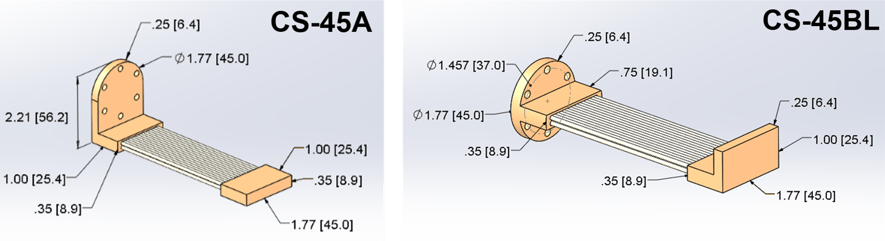

CS Model Examples

Cryocooler cold head thermal strap models by TAI

Pictured: Two submodels from our CS line.

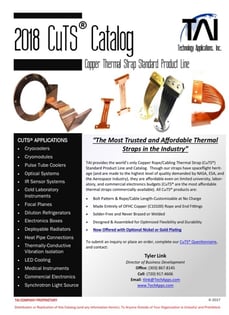

*Complete drawings, details and specs on all of our 72 standard models can be found in the new 2018 CuTS® Catalog.


To see flexibility demonstrations of our standard and custom CuTS®, click here now! For important tips on designing and ordering thermal straps, please visit our new web page: Thermal Strap Design & Ordering Tips, now!

If you would like to submit an inquiry, download our CuTS® Questionnaire, complete, and send to our Director of Business Development, Tyler Link.  Mr. Link is available to discuss your inquiry from 06:00 - 22:00 MST, 13:00 - 05:00 GMT, 7 days/week, and can get you an assessment in 1-3 business days (max).
