Custom Electronics Cooling Systems

TAI designs and fabricates custom electronics cooling systems for cooling of critical system components. Below are a few examples of the systems that we have developed for past projects:

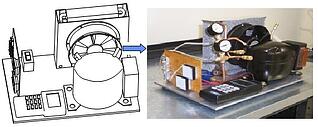

Telecommunication Systems Cooling

Telecommunication Systems Cooling

Telecommunication Systems Cooling

  • Performance: 6,000 W cooling at 285° K.
  • Utilizes common, readily available components.
  • Fabricated and tested for acceptance.
  • Envelope: 54 X 12.5 X 21 Inches.

 Chip & Circuit Board Cooling

Chip & Curcuit Board Cooling

Chip & Curcuit Board Cooling

  • Direct electronic package cooling.
  • Chip cooling: 40 W each at 300° K.
  • Common closed-cycle refrigerator cools up to 100 chips.

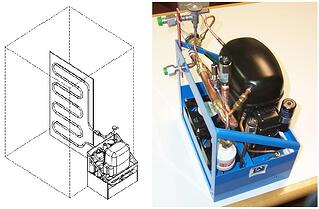

 Electronic Enclosure Cooling

Electronic Enclosure Cooling

Electronic Enclosure Cooling

  • Vapor compression cycle refrigerator.
  • Direct electronic package cooling.
  • Performance: 600 W at 250° K.
  • Envelope: 13.5 X 9.5 X 12.5 Inches.
